Overview

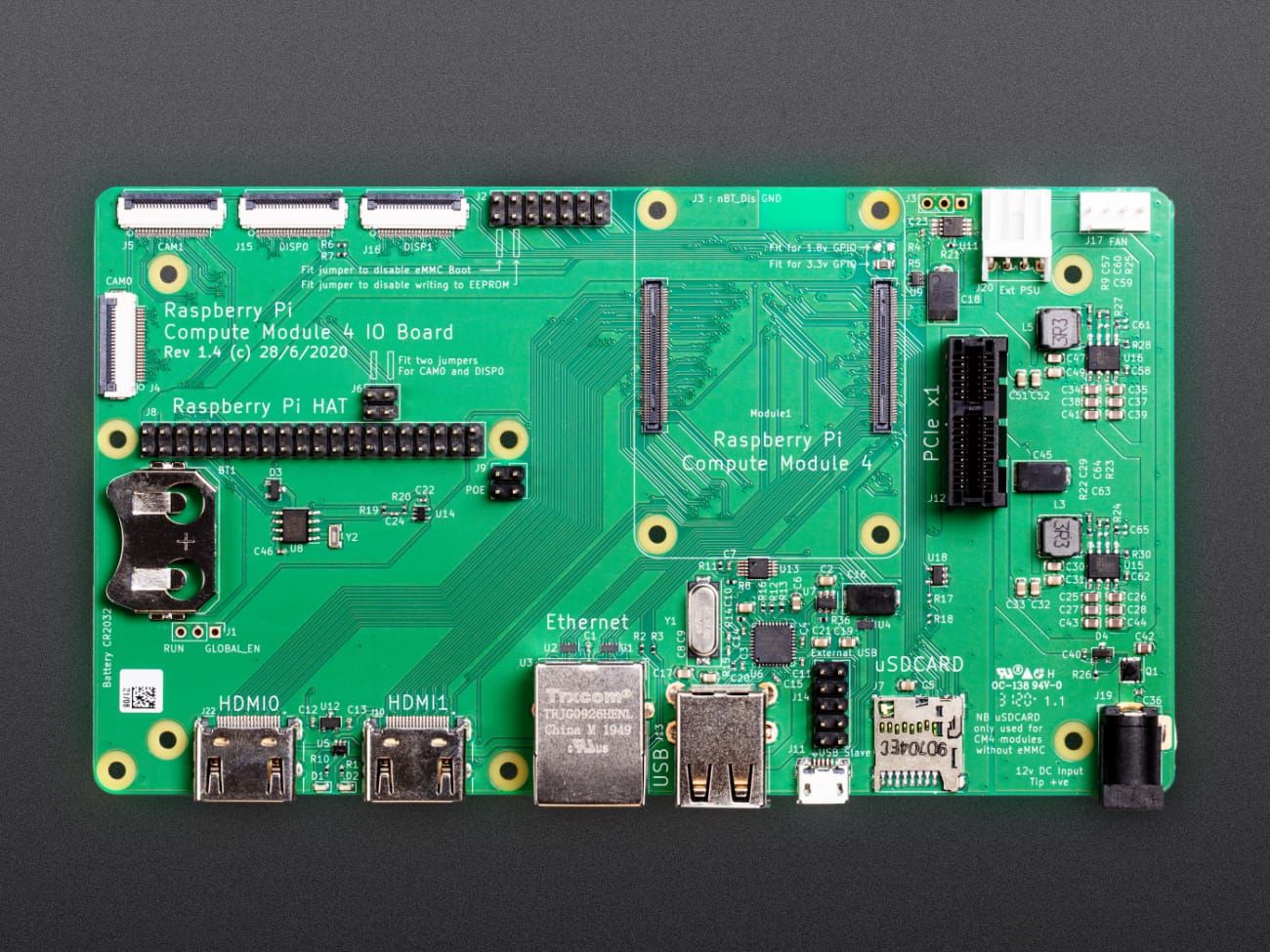

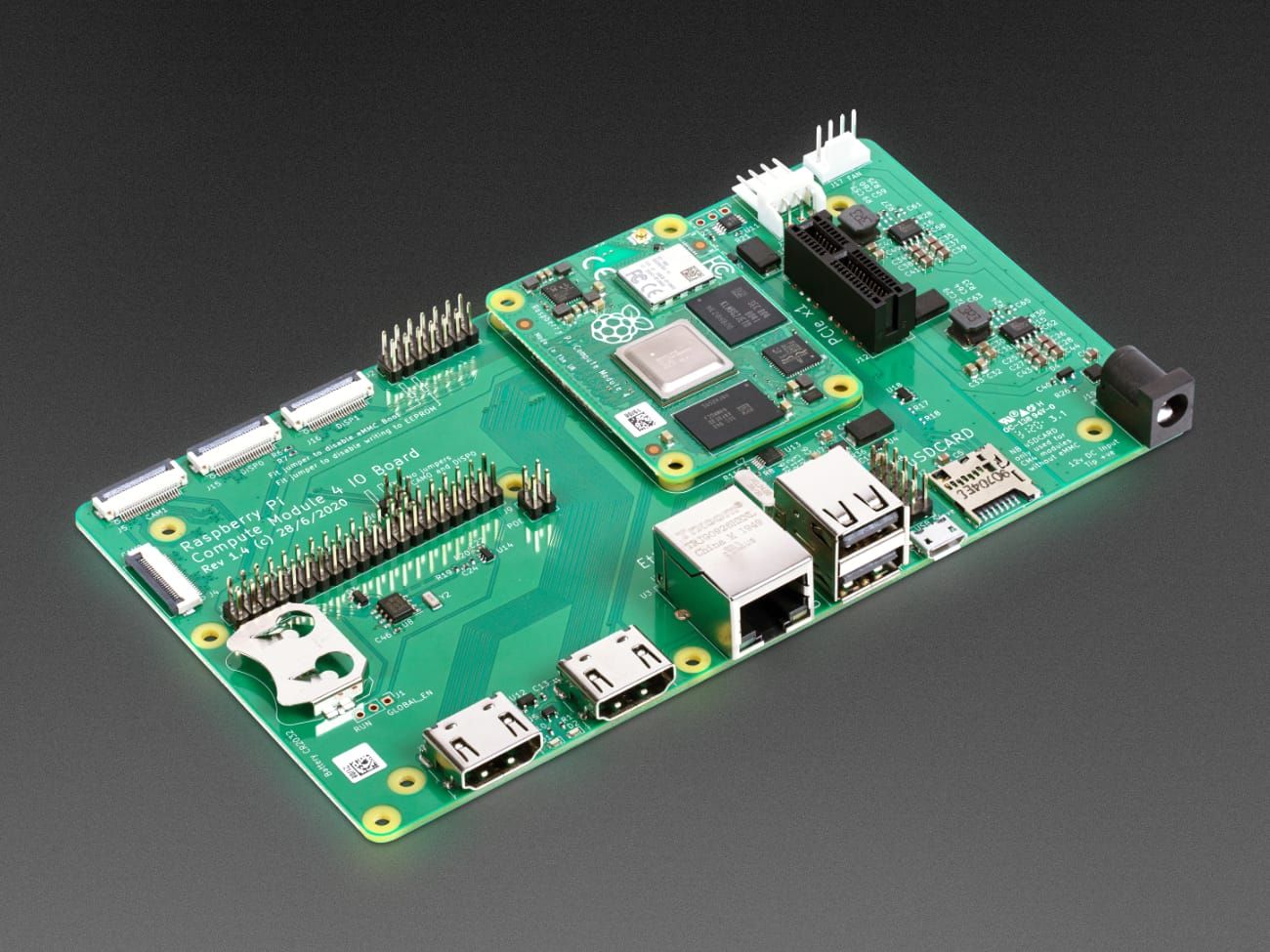

The Compute Module 4 IO Board is an accessory designed to expand the capabilities of the Raspberry Pi Compute Module 4 (CM4). This baord serves as a development platform, as well as an embeded board for integrating into end products.
The IO Board helps you jump start quickly with your CM4 module by giving easy access to many peripherlals like the HATs, PCIe, NVMe, SATA and USB.
Specification

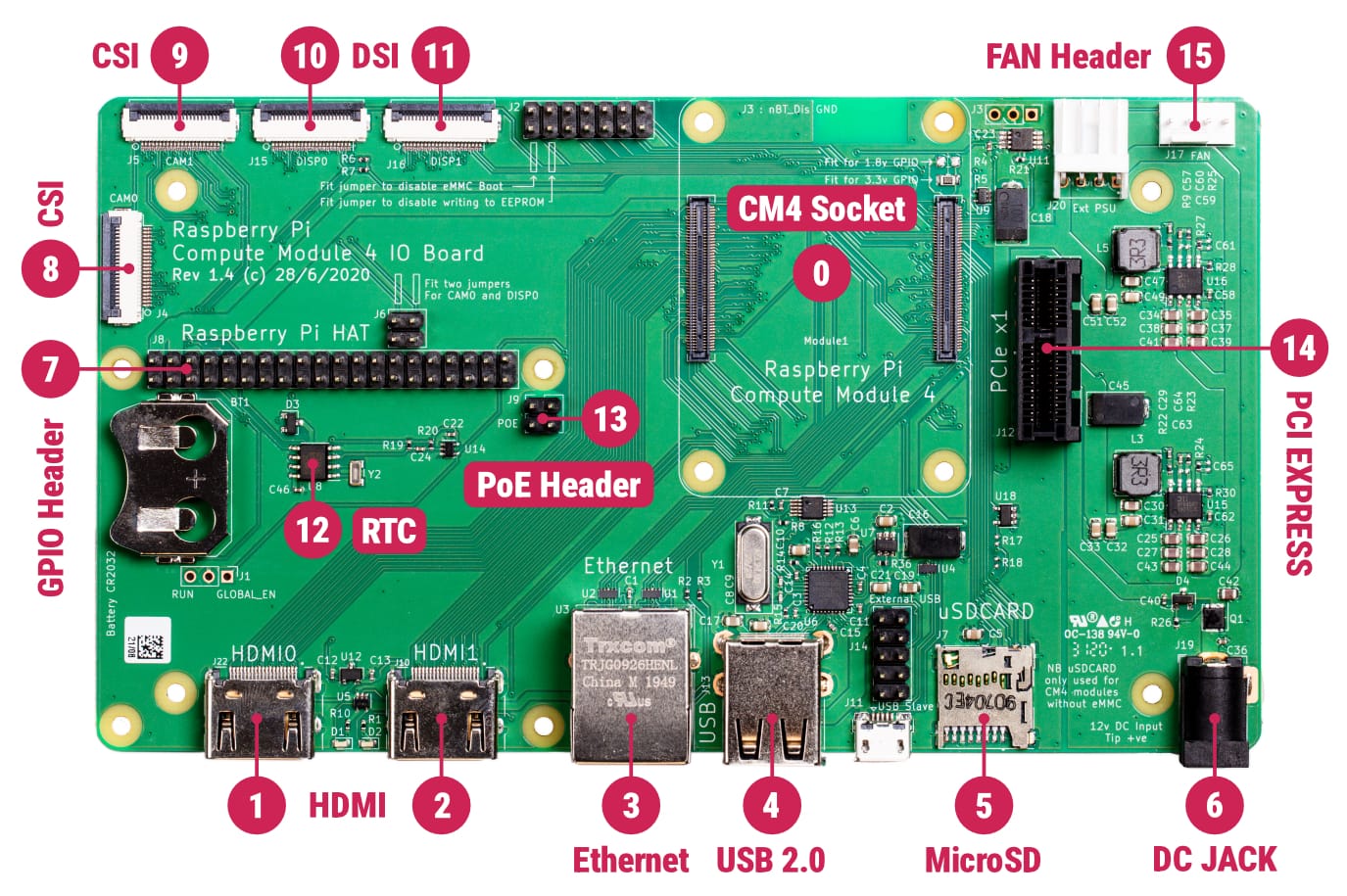

Specification for Raspberry Pi Compute Module 4 IO Board.

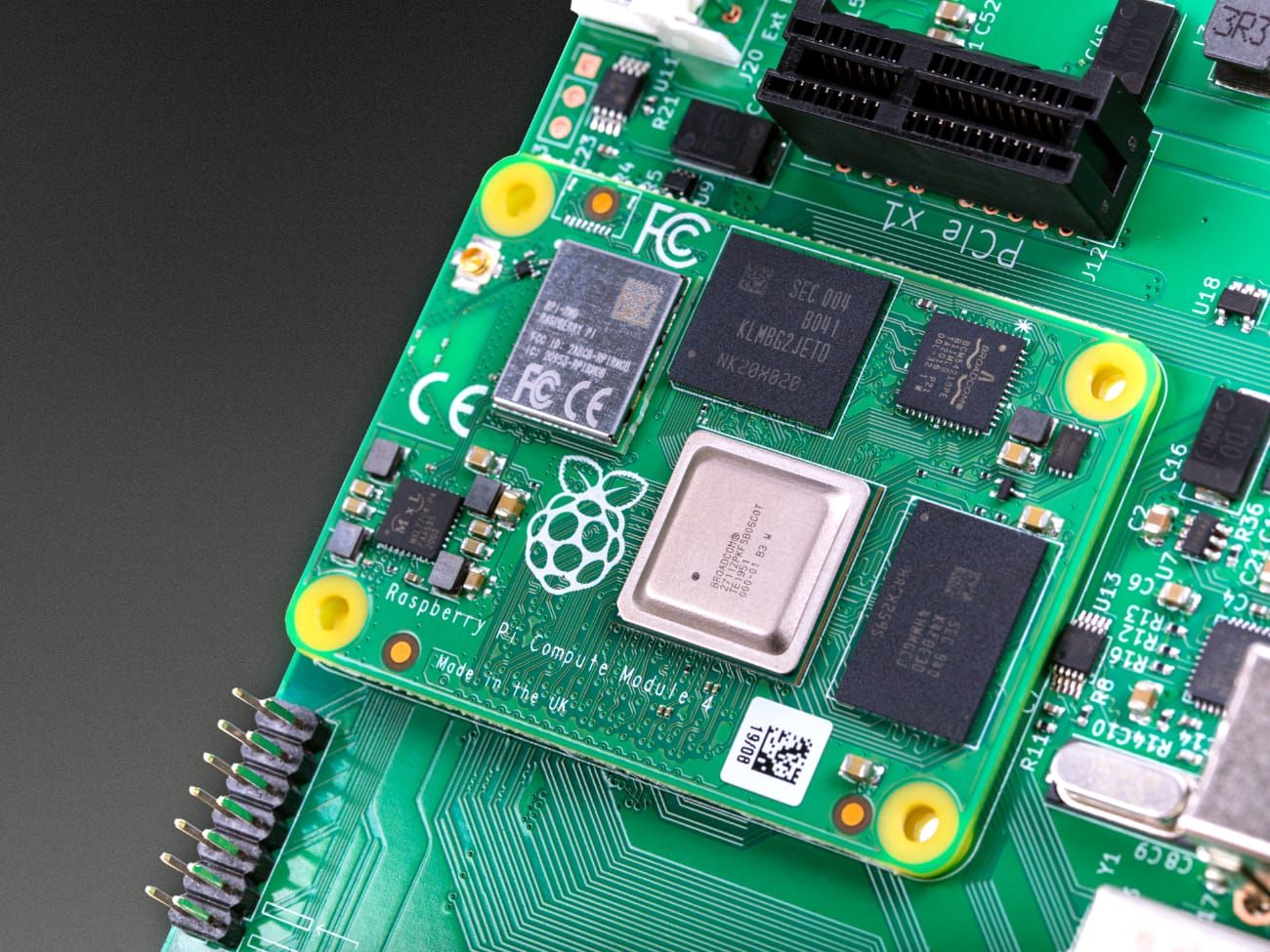

| 0 | CM4 Socket For all variants of Compute Module 4. |
|---|---|
| 1, 2 | HDMI Dual full-size HDMI 2.0 connectors. |
| 3 | Ethernet Gigabit Ethernet socket supporting PoE HAT. |
| 4 | USB On-board USB 2.0 hub with 2x USB 2.0 connectors. |
| 5 | MicroSD Card SD card socket for Compute Module 4 variants without eMMC For use only with CM4Lite modules. |
| 6 | DC Barrel Jack 2.1 mm barrel jack with +12 DC input. Has on-board +12V to +5V DC-DC converter to power the CM4. |
| 7 | GPIO Header 40 Pin GPIO header for accessing the IO pins. |
| 8, 9 | CSI Dual MIPI CSI-2 camera FPC connectors. (22-pin 0.5mm pitch) |
| 10, 11 | DSI Dual MIPI DSI-2 display FPC connectors. (22-pin 0.5mm pitch) |
| 12 | RTC Real-time clock (RTC) with battery backup. |
| 13 | PoE Header Power Over Ethernet header for PoE HAT. |
| 14 | PCIe PCIe Gen 2 x1 socket |
| 15 | Fan Connector This connector supports standard +12V fans with PWM drive and tacho output. |
Mechanical Drawing

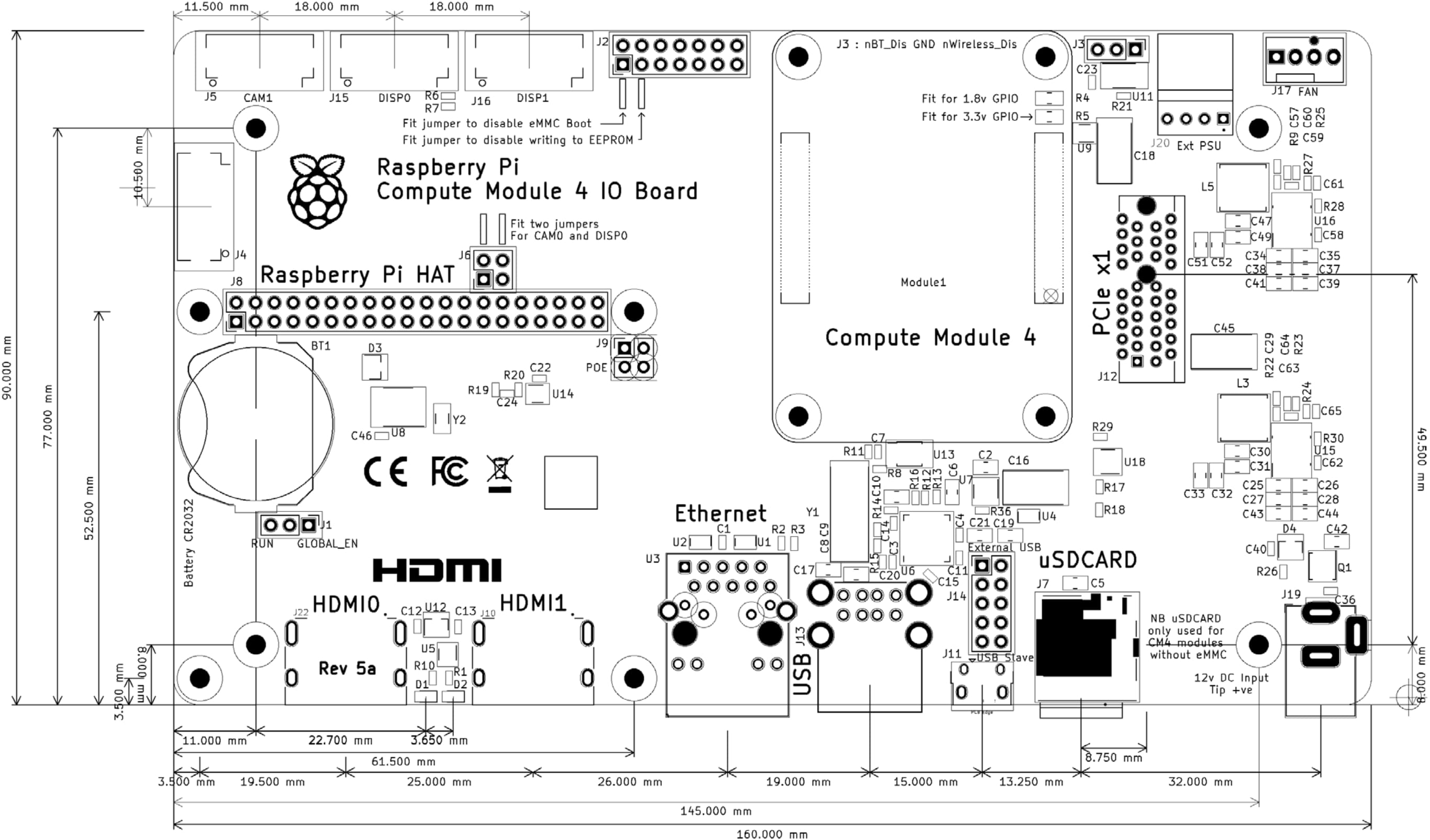

Compute Module 4 IO Board mechanical drawing, all units in mm.
