SKU: TH0530

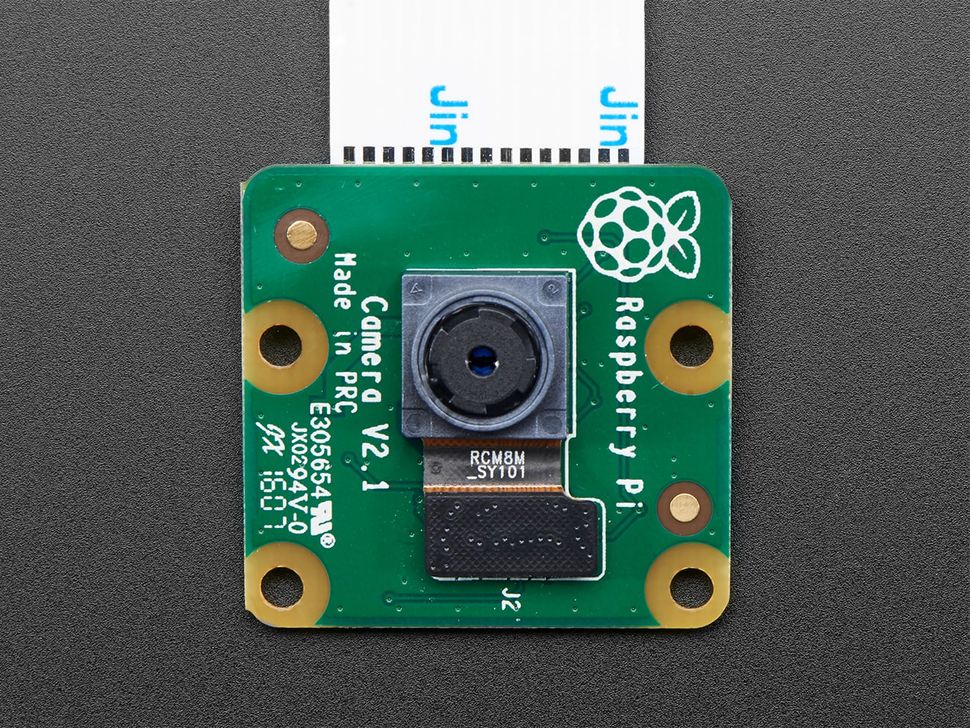

The Raspberry Pi Camera Module v2 is a compact camera module designed for Raspberry Pi devices, with dimensions of approximately 25 × 24 × 9 mm and weighing just 3 grams, it is highly portable and suitable for various applications. The module features an 8-megapixel Sony IMX219 sensor, delivering a still resolution of 3280 × 2464 pixels. It supports multiple video modes, including 1080p47, 1640 × 1232p41, and 640 × 480p206, making it ideal for image and video capture.
Sold Out!
We will notify you when this item is back in stock. Please enter your email.
The Raspberry Pi Camera Module v2 is a compact camera module designed for Raspberry Pi devices, with dimensions of approximately 25 × 24 × 9 mm and weighing just 3 grams, it is highly portable and suitable for various applications. The module features an 8-megapixel Sony IMX219 sensor, delivering a still resolution of 3280 × 2464 pixels. It supports multiple video modes, including 1080p47, 1640 × 1232p41, and 640 × 480p206, making it ideal for image and video capture.
The camera has a sensor image area of 3.68 × 2.76 mm (4.6 mm diagonal), with individual pixel dimensions of 1.12 μm × 1.12 μm. Its optical size is 1/4", and the adjustable focus allows for a depth of field from approximately 10 cm to infinity. The lens offers a focal length of 3.04 mm, with a horizontal field of view (FoV) of 62.2 degrees and a vertical FoV of 48.8 degrees. The focal ratio is F2.0, ensuring excellent light capture for sharp and vibrant images.

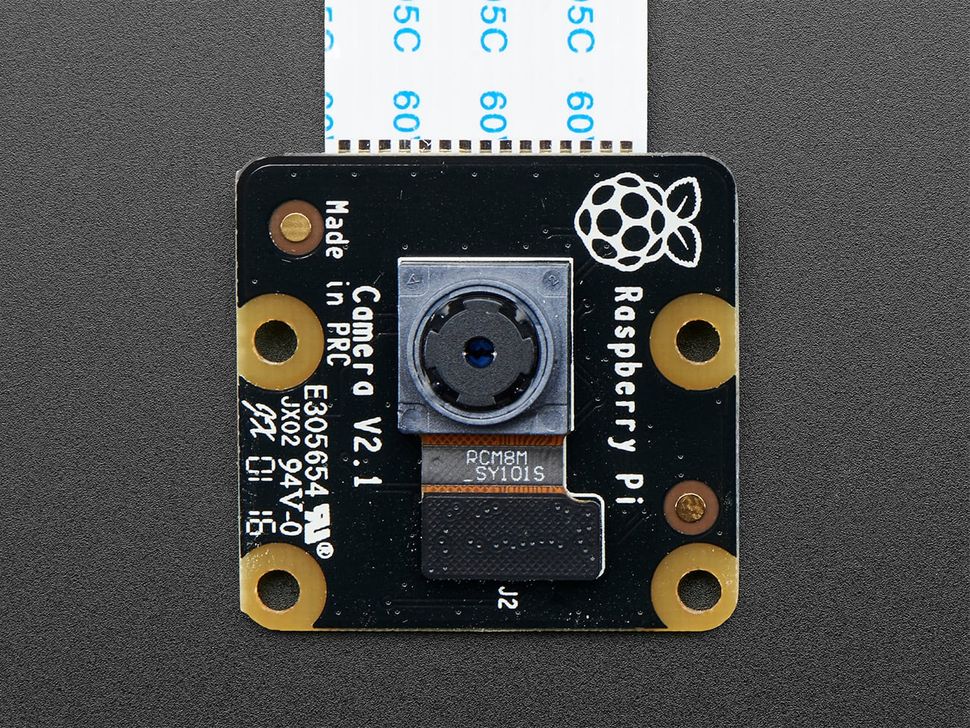

The module supports a maximum exposure time of 11.76 seconds, enabling low-light photography and creative long-exposure shots. While it lacks a lens mount, the Camera Module v2 comes with a NoIR version.
Technical specifications for Raspberry Pi Camera Module v2.
| Specification | Details |
|---|---|
| Size | Around 25 × 24 × 9 mm |
| Weight | 3g |
| Still resolution | 8 megapixels |
| Video modes | 1080p47 1640 × 1232p41 640 × 480p206 |
| Sensor | Sony IMX219 |
| Sensor resolution | 3280 × 2464 pixels |
| Sensor image area | 3.68 × 2.76 mm (4.6 mm diagonal) |
| Pixel size | 1.12 μm × 1.12 μm |
| Optical size | 1/4" |
| Focus | Adjustable |
| Depth of field | Approx 10 cm to ∞ |
| Focal length | 3.04 mm |
| Horizontal Field of View (FoV) | 62.2 degrees |
| Vertical Field of View (FoV) | 48.8 degrees |
| Focal ratio (F-Stop) | F2.0 |
| Maximum exposure time (seconds) | 11.76 |
| Lens Mount | N/A |
| NoIR version available? | Yes |
