Overview

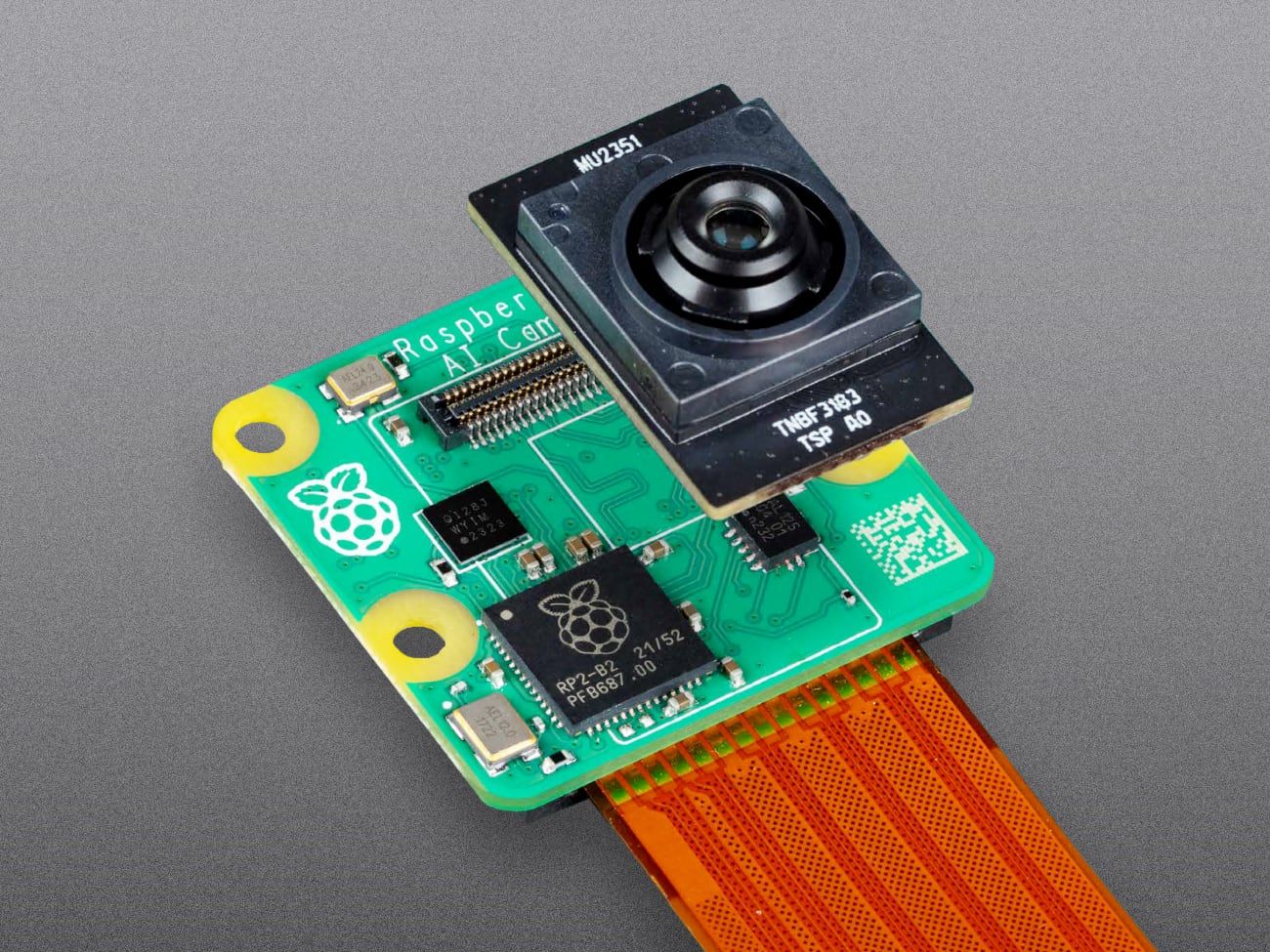

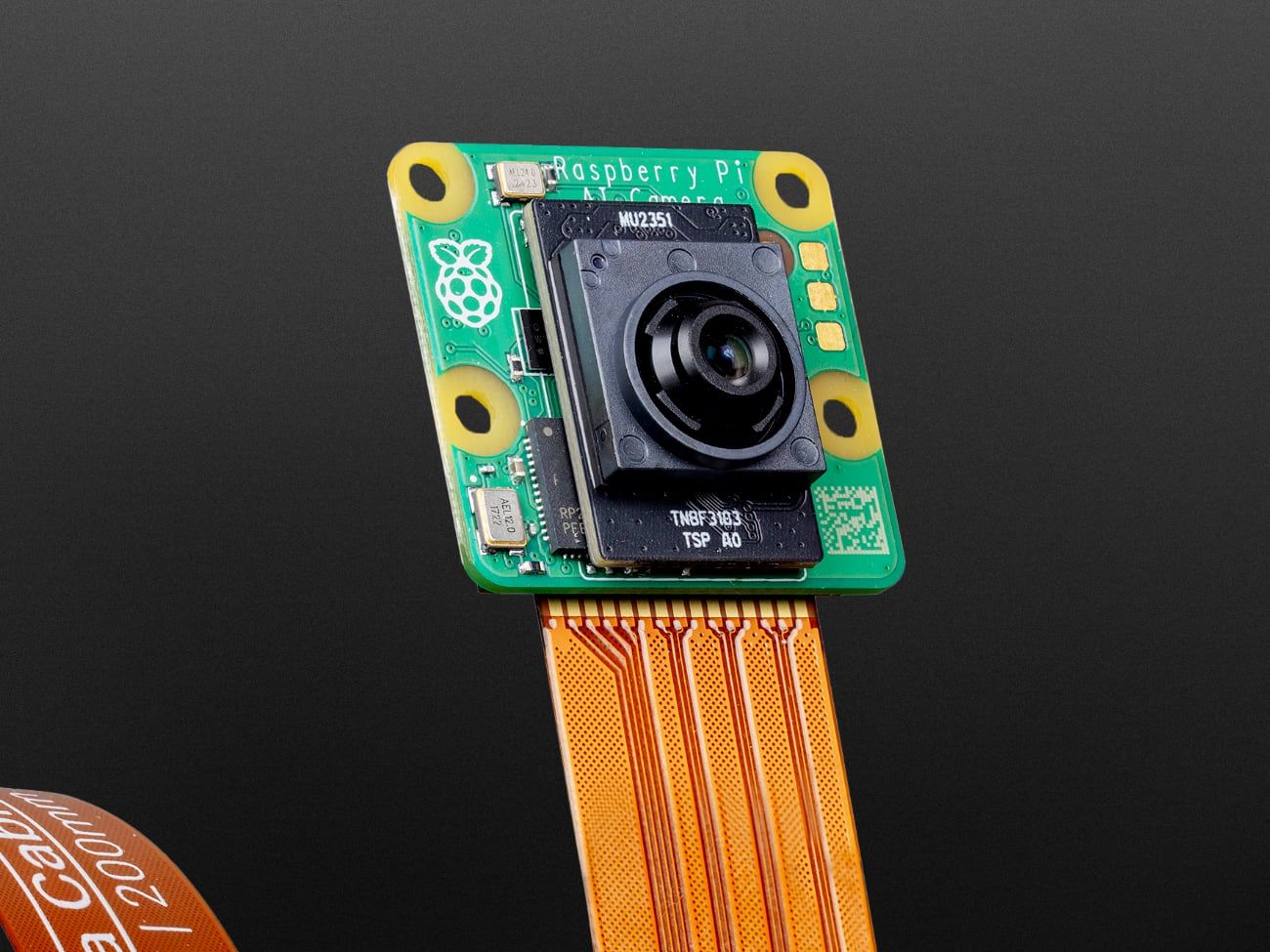

The Raspberry Pi AI Camera, powered by a 12.3 MP Sony's IMX500 Intelligent Vision Sensor. This 12-megapixel camera module integrates on-device AI processing, eliminating the need for external accelerators.
By seamlessly capturing images and videos enriched with tensor metadata, the AI Camera frees up the host Raspberry Pi's processing power for other tasks. This innovative approach, supported by libraries like libcamera, Picamera2, and the rpicam-apps suite, empowers users of all levels to develop sophisticated AI vision applications.
Compatible with all Raspberry Pi computers while maintaining the familiar form factor of Camera Module 3, it accommodates the larger IMX500 sensor and optical subassembly.
Specification
Technical specification for Raspberry Pi Ai Camera.
Sensor | Sony IMX500 |
---|---|
Resolution | 12.3 megapixels |
Sensor size | 7.857 mm (type 1/2.3) |
Pixel size | 1.55 μm × 1.55 μm |
Horizontal/vertical | 4056 × 3040 pixels |
IR cut filter | Integrated |
Autofocus system | Manual adjustable focus |
Focus range | 20 cm – ∞ |
Focal length | 4.74 mm |
Horizontal field of view | 66 ±3 degrees |
Vertical field of view | 52.3 ±3 degrees |
Focal ratio (F-stop) | F1.79 |
Infrared sensitive | No |
Output | Image (Bayer RAW10), ISP output (YUV/RGB), ROI, metadata |
Input tensor maximum size | 640(H) × 640(V) |
Input data type | 'int8' or 'uint8' |
Memory size | 8388480 bytes for firmware, network weight file, and working memory |
Framerate | 2×2 binned: 2028×1520 10-bit 30fps Full resolution: 4056×3040 10-bit 10fps |
Dimensions | 25 × 24 × 11.9 mm |
Ribbon cable length | 200 mm |
Cable connector | 15 × 1 mm FPC or 22 × 0.5 mm FPC |
Operating temperature | 0°C to 50°C |
