Overview

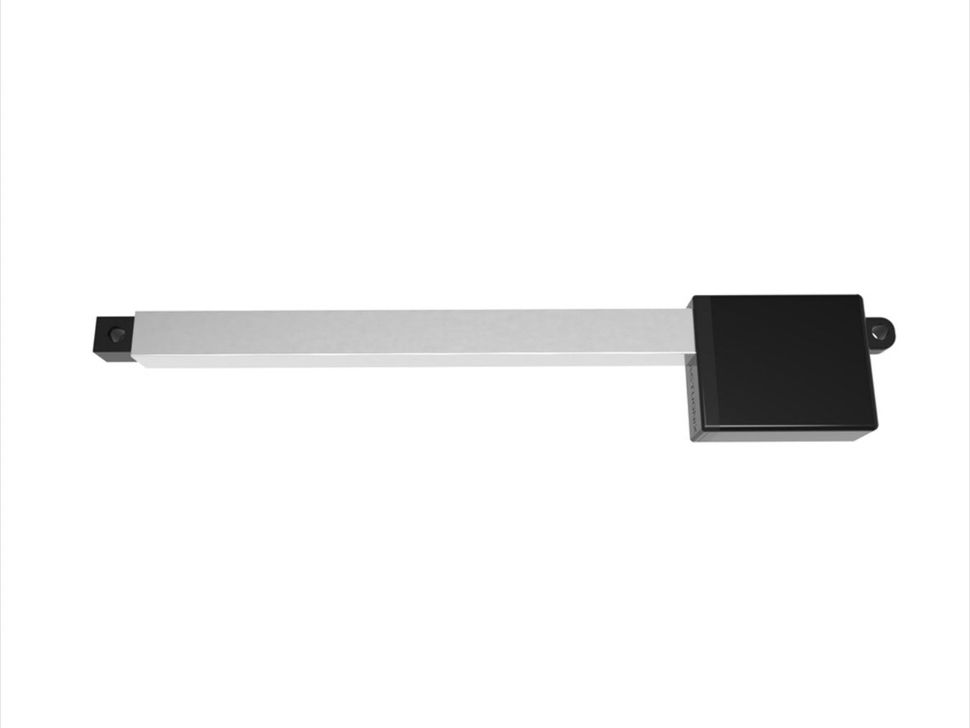

Actuonix Motion Devices unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear stepper actuators are a superior alternative to designing your own push/pull mechanisms. The P8 stepper actuators are complete, self-contained linear motion devices. Several stroke length options allow these to fit a wide variety of applications.
The P8 stepper is designed to push or pull a load axially along its full stroke length. The speed of travel is determined by the step frequency, and maximum force by the current applied. When power is removed the actuator will hold its position, unless the applied load exceeds the back drive force.
Whats in the Box?
Whats included in the box?
- P8-ST Micro Stepper Actuator
- Mounting Screws and Nuts, etc.
Downloads
SPECIFICATION
Actuator specification
- Manufacturer Part Number
P8-100-165-3-ST - Back Drive Force (static)
25N - Maximum Load
12N - Back Drive Force (power applied)
>100N - No Load Speed
15mm/s - Stroke Length
100mm - Mass
32g - Max Side Load
~0.10* Maximum Force - Closed Length (hole to hole)
135mm - Input Voltage
0-4.2 VDC - Max Current (per phase)
256mA - Full step size
~0.0018mm - Operating Temperature
-10 C to +40 C - Audible Noise
less than 40dB at low noise settings - Max Duty Cycle
100% - Ingress Protection
IP-54 - Mechanical Backlash
<0.5mm - Maximum Static Load
200N - Resistance (per phase)
15ohm - Inductance (per phase)
4.5mH @1.5khz
ABOUT Actuonix
Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
