Overview

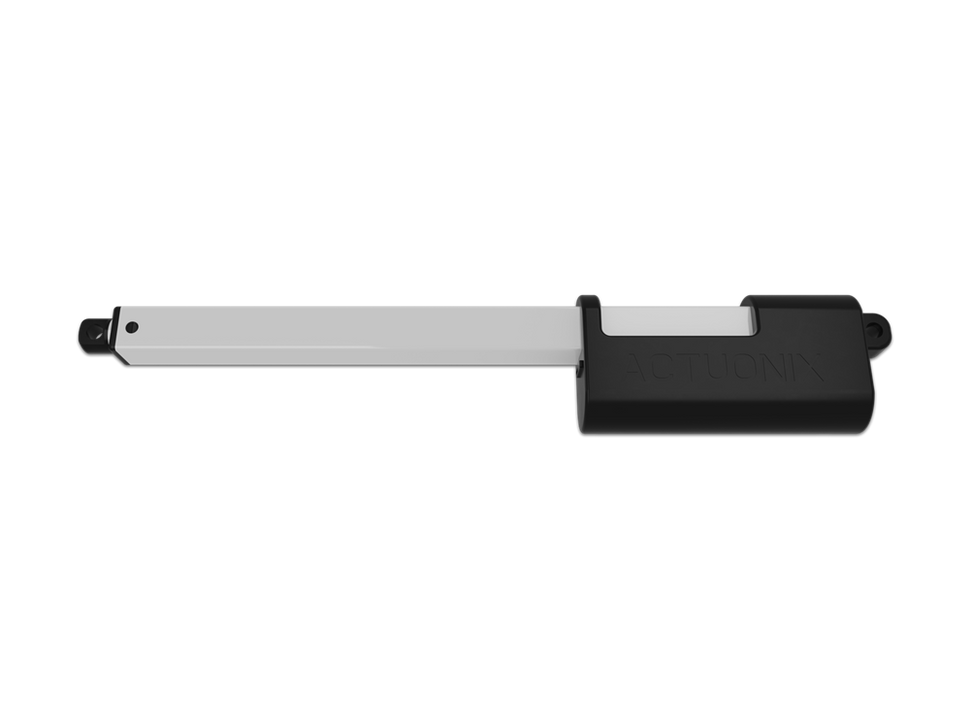

Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These linear actuators are a superior alternative to designing your own push/pull mechanisms. The P16 actuators are complete, self-contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Several gear ratios are available to give you varied speed/force configurations. The parallel design makes the P16 significantly shorter than the same stroke length L16, but the most attractive feature of this model is its high cycle life. Premium components in this model include: large sealed stainless steel bearings, planetary gearbox, stainless steel lead screw, and glass re-enforced nylon housing.
This model of actuator belongs to Actuaonix P16-P Series which includes an Internal Position Controller. All we need to do do is to provide an input with the position to which the actuator is desired and the Actuator will move to the commanded position. It is compatible with RC Receivers, Arduino, Microcontroller, PLC Analog 0-5V or 4-20mA systems. It also gives out analog position output.
Whats in the Box?
Whats included in the box?
- P16 Actuator with Potentiometer Feedback
- Mounting Screws and Nuts, etc.
Downloads
SPECIFICATION
Actuator specification
- Manufacturer Part Number
P16-150-22-12-P - Peak Power Point
40N @26mm/s - Peak Efficiency Point
25N @34mm/s - Max Speed (no load)
46mm/s - Max Force (lifted)
50N - Back Drive Force (static)
75N - Mass
125g - Repeatability (-P&LAC)
0.6mm - Max Side Load (extended)
10N - Closed Length (hole to hole)
197mm - Potentiometer (-R, -P)
20kΩ±50% - Input Voltage
12V - Max Input Voltage
15V - Stall Current
1000mA @ 12V - Operating Temperature
-10 C to +50 C - Potentiometer Linearity
Less than 2.00% - Max Duty Cycle
20% - Audible Noise
62dB @ 45cm - Ingress Protection
IP-54 - Mechanical Backlash
0.3mm - Maximum Static Force
500N
ABOUT Actuonix
Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
