Arduino Mega 2560 Rev3

Overview

The Arduino Mega 2560 is a microcontroller based development board designed for projects that require a lot of input/output pins and processing power. The Mega 2560 It is based on the ATmega2560 from Atmel and has 54 digital IO pins (15 of which can be used as PWM outputs), 16 analog inputs, 4 UARTs, 16 MHz crystal oscillator.

For powering the board simply connect it to a computer using the USB cable, the board has a USB Type-B connector. You can also power the board using a AC-DC power adapter or a battery ranging from 7V to 12V.

Features

ATmega2560 Processor

• Up to 16 MIPS Throughput at 16MHz
• 256k bytes (of which 8k is used for the bootloader) 4k bytes EEPROM
• 8k bytes Internal SRAM
• 32 × 8 General Purpose Working Registers
• Real Time Counter with Separate Oscillator
• Four 8-bit PWM Channels
• Four Programmable Serial USART Controller/Peripheral SPI Serial Interface

ATmega16U2 Processor

• Up to 16 MIPS Throughput at 16MHz
• 16k bytes ISP Flash Memory
• 512 bytes EEPROM
• 512 bytes SRAM
• USART with SPI master only mode and hardware flow control (RTS/CTS)
• Master/Slave SPI Serial Interface

Sleep Modes

• Idle
• ADC Noise Reduction
• Power-save
• Power-down
• Standby
• Extended Standby

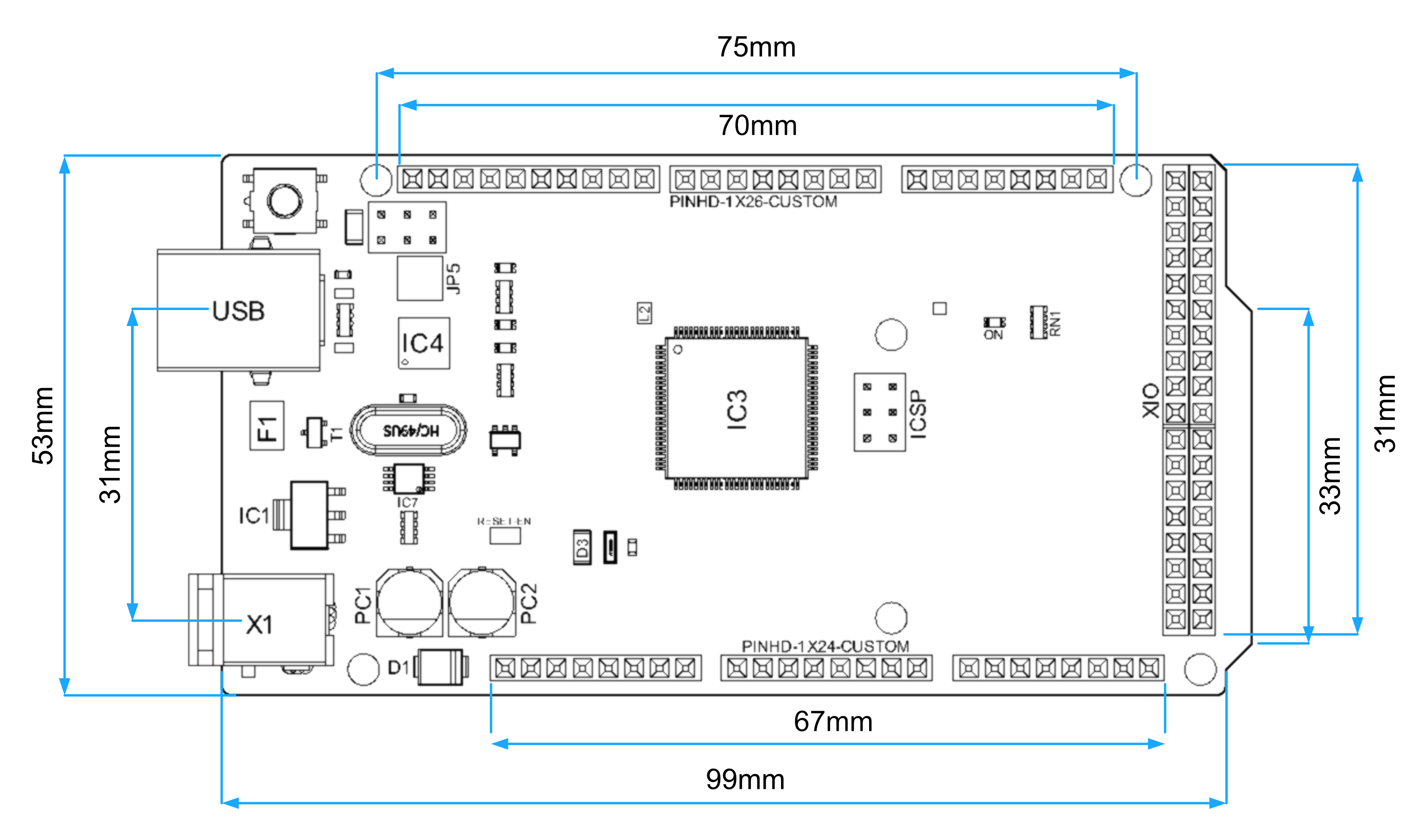

Specifications

Pinout
