Overview

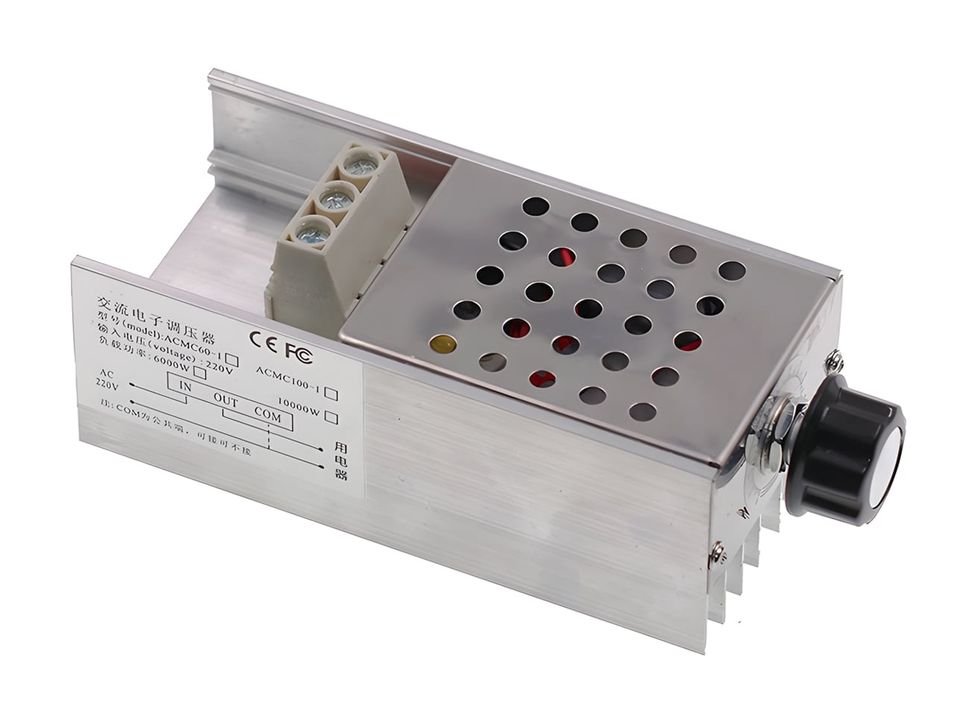

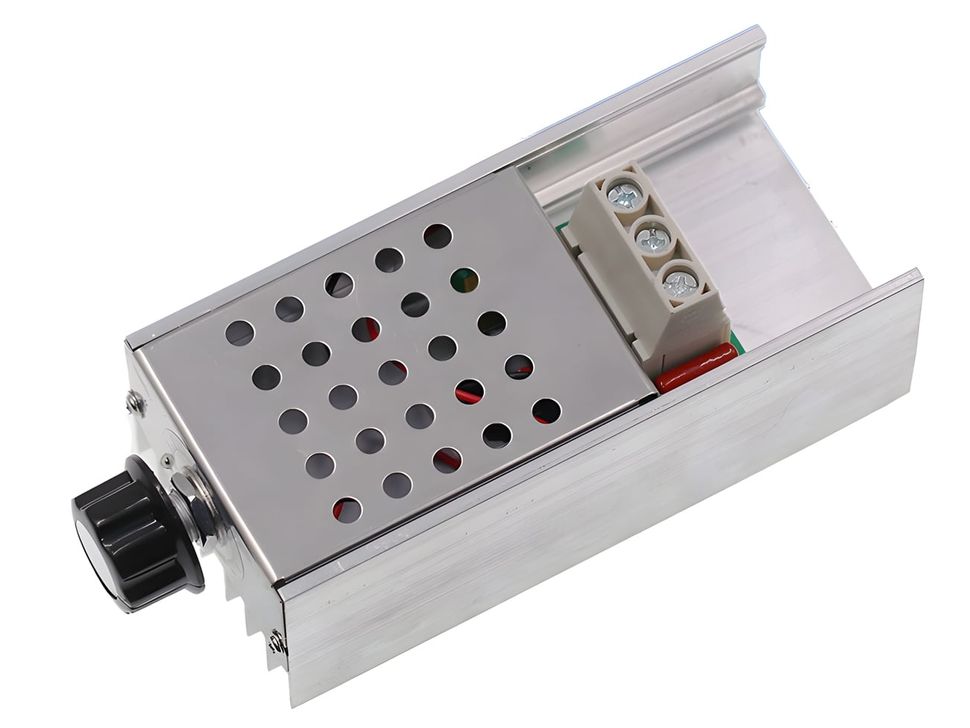

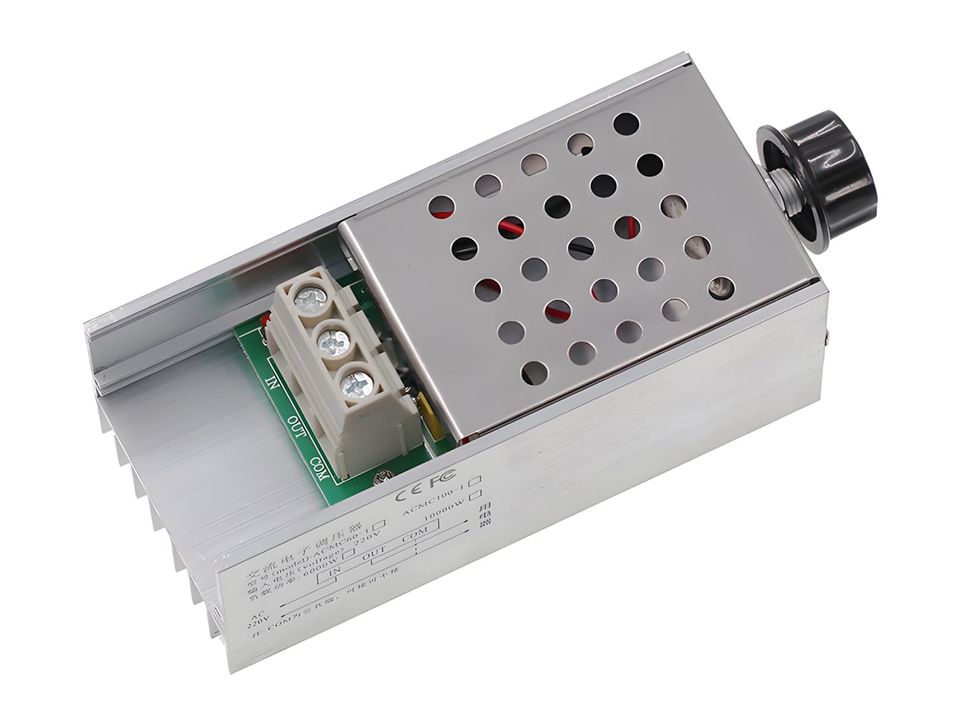

This is a 10000W 220V AC high power SCR thyristor based dimming voltage regualtor. It has an adjustable voltage range from 0V to 220V (AC) and provide efficiency upto 90%.
It operates within a frequency range of 50Hz to 60Hz, which aligns with standard electrical systems in many regions.
Connection Guide
Using the regulator is simple and user-friendly. To operate, follow these steps:
- Connect the load to the output terminal of the module.
- Connect the input terminal of the module to AC power source.
- Rotate the onboard potentiometer knob to adjust and set the desired voltage and power level.
This straightforward process makes the regulator an ideal choice for a wide range of applications, from home use to industrial setups.
Specification
Technical specification for 10000W 220V AC thyristor SCR dimming votlage regulator.
| Input Voltage | AC 220V |
|---|---|
| Power Rating | 10000W (Maximum) 5000W (Recommended) for continuous use. |
| Adjustable Voltage Range | 0V to 220V (AC) Starting at 20V AC |
| Control Mode | Rotary knob for voltage adjustment |
| Compatibility | Resistive Load (Recommended) |
| Fuse | Yes |
| Dimensions | 85mm x 55mm x 38mm |
| Material | Metal casing for protection and heat dissipation |
Attention!
Ensure the load is connected before connecting the SCR regulator to the AC power source.
This SCR voltage regulator is primarily designed for resistive loads like heaters, incandescent light bulbs and other similar resistive loads.
While it may work with most single-phase AC motors, compatibility with inductive loads is not guaranteed.
If the current exceeds the allowable limit, it may not only blow the fuse but also potentially damage the regulator.
