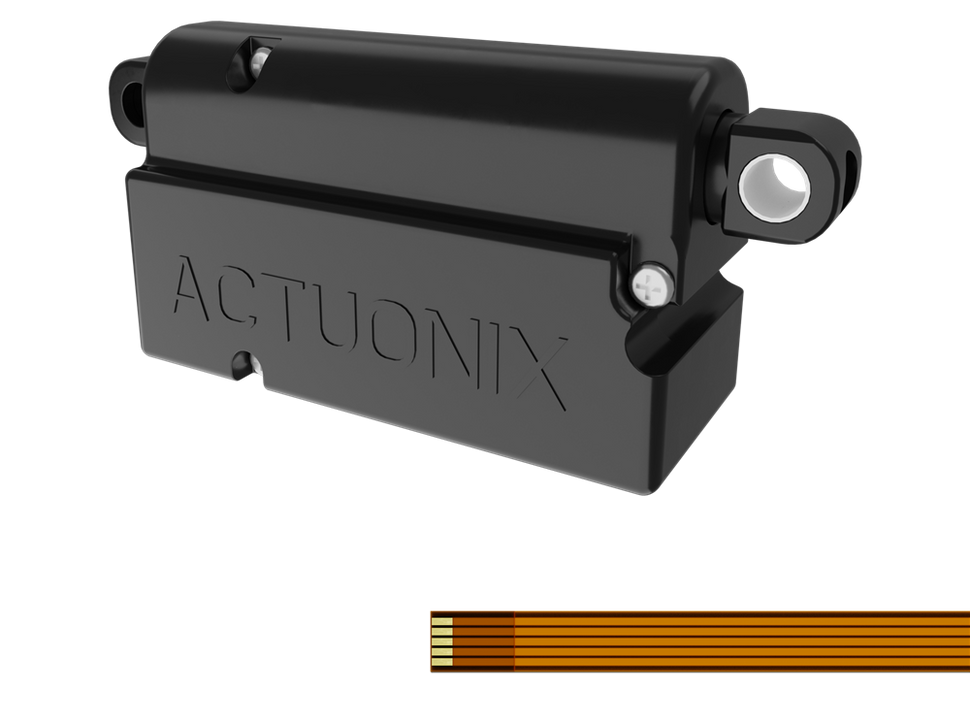

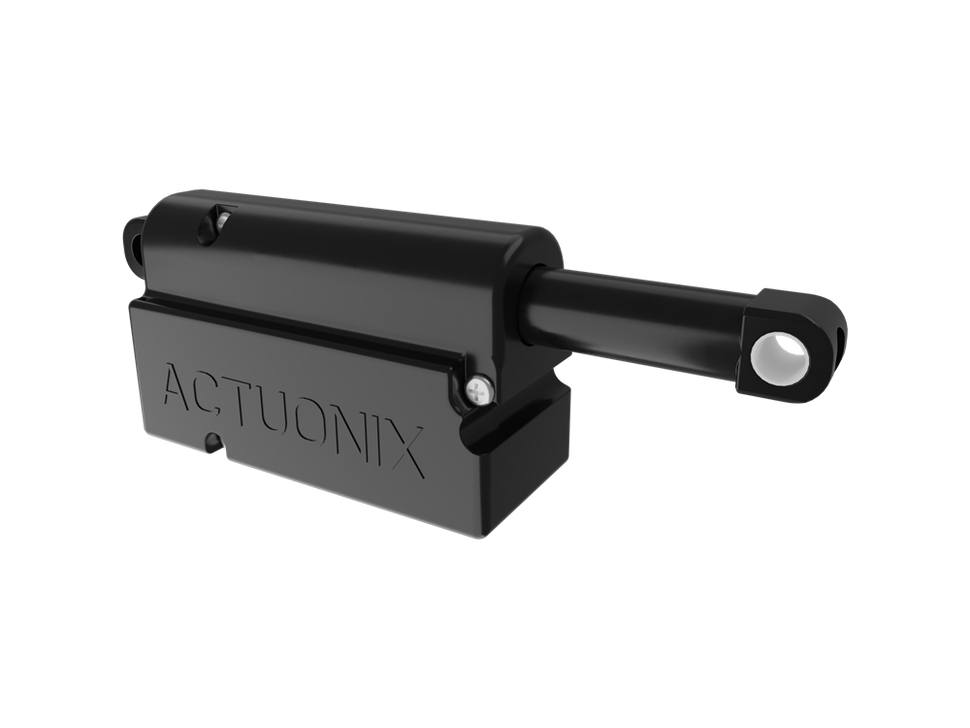

PQ12-P Linear Actuator with Feedback 100:1 12 volts

Actuonix
SKU: TH0041 MPN: PQ12-100-12-P
$65.00 Out of Stock
Ships Today - If you order within hrs mins!


Quality
First

Awesome
Support

Secure
Checkout

Worldwide
Shipping

Bulk Order?

Contact sales on WhatsApp and get bulk order discount!
or, mail us on support

Contact Sales

Out of Stock!

We will email you when this item is back in stock. Please enter your email

Also Include

Overview

Actuonix's unique line of Miniature Linear Actuators enables a new generation of motion-enabled product designs, with capabilities that have never before been combined in a device of this size. These tiny linear actuators are a superior alternative to designing your own push/pull mechanisms. Their low cost and easy availability make them attractive to hobbyists and OEM designers alike.

The PQ12 actuators are complete, self contained linear motion devices with position feedback for sophisticated position control capabilities, or end of stroke limit switches for simple two position automation. Driving them couldn’t be easier, simply apply a DC voltage to extend the actuator, and reverse the polarity to retract it. Several gear ratios and voltage options are available to give you varied speed/force configurations.

Whats in the Box?
Whats in the Box?

Whats included in the box?

  • PQ12 Actuator with Feedback
  • Mounting Screws and Nuts, etc.
Downloads

SPECIFICATION

Actuator specification

  • Manufacturer Part Number
    PQ12-100-12-P
  • Peak Power Point
    40N @ 6mm/s
  • Peak Efficiency Point
    20N @ 8mm/s
  • Max Speed (no load)
    10mm/s
  • Max Force (lifted)
    50N
  • Back Drive Force (static)
    35N
  • Stroke
    20mm
  • Mass
    19g
  • Position Repeatability
    ±0.1mm
  • Max Side Load (extended)
    10N
  • Feedback Potentiometer
    5kΩ±50%
  • Input Voltage
    12V
  • Stall Current
    210mA @ 12V
  • Operating Temperature
    -10°C to +50°C
  • Max Duty Cycle
    20%
  • Audible Noise
    55dB @ 45cm
  • Ingress Protection
    IP-54
  • Mechanical Backlash
    0.25 mm

ABOUT Actuonix



Actuonix Motion Devices build micro linear actuators and linear servos. Based in Victoria, BC, Canada, they provide innovative and economical micro motion solutions for the growing needs of several markets including robotics, aerospace, automotive, medical and radio control. Actuonix is a leading manufacturer and innovator in the micro motion marketplace. They offer the most affordable, high quality micro linear actuators.
